Solution overview
One heavy platform combines sensor presence, route mobility, cargo delivery and remotely controlled mission payloads.
Purpose
What the platform does

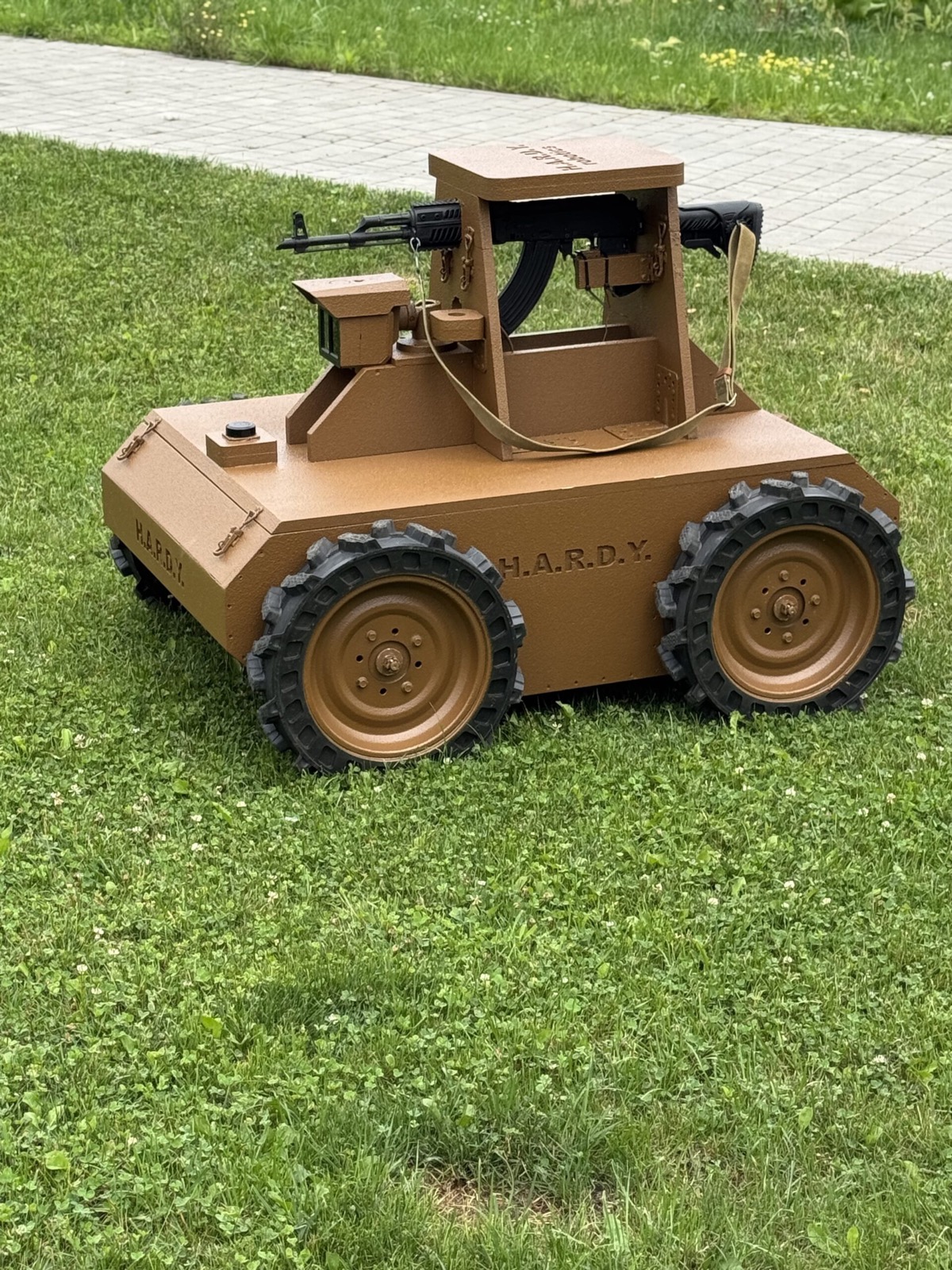

ARGUS carries heavy physical presence, sensors and payloads into a hazardous environment while the operator retains command and decision authority.
Operational value
What the unit receives
- fewer hazardous human movements for ISR, logistics and route tasks;
- one base for sensor and remotely controlled mission modules;
- repairable composite body and clear service access.
Mission roles
What the platform is built for
MATERIAL UNDER LOAD

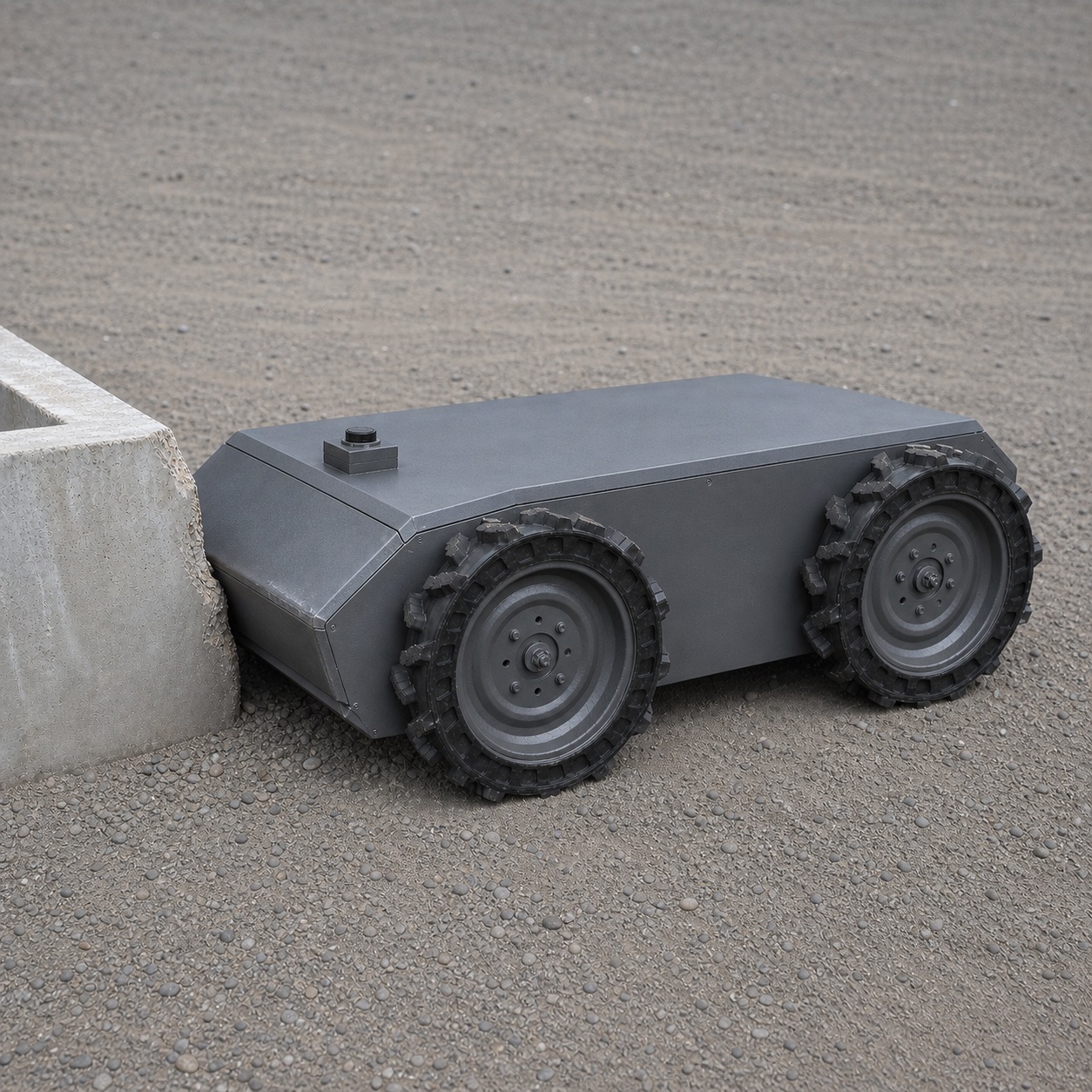

HARDY ARGUS: evidence, calculation and a steel control
The comparison keeps the exterior geometry and load concept constant and changes only the shell material. This makes the difference in damage geometry and thermal behaviour clear and directly comparable.
Basis: ρplywood ≈ 700 kg/m³; ρsteel = 7,850 kg/m³; plywood E = 7.452–10.048 GPa; steel E = 210 GPa; λplywood = 0.147–0.175 W/(m·K); λsteel = 48 W/(m·K). E·t³ is a panel screening index only. Complete-body response depends on ribs, joints, openings, supports, speed, mass, contact geometry and duration.
How damage starts and propagates

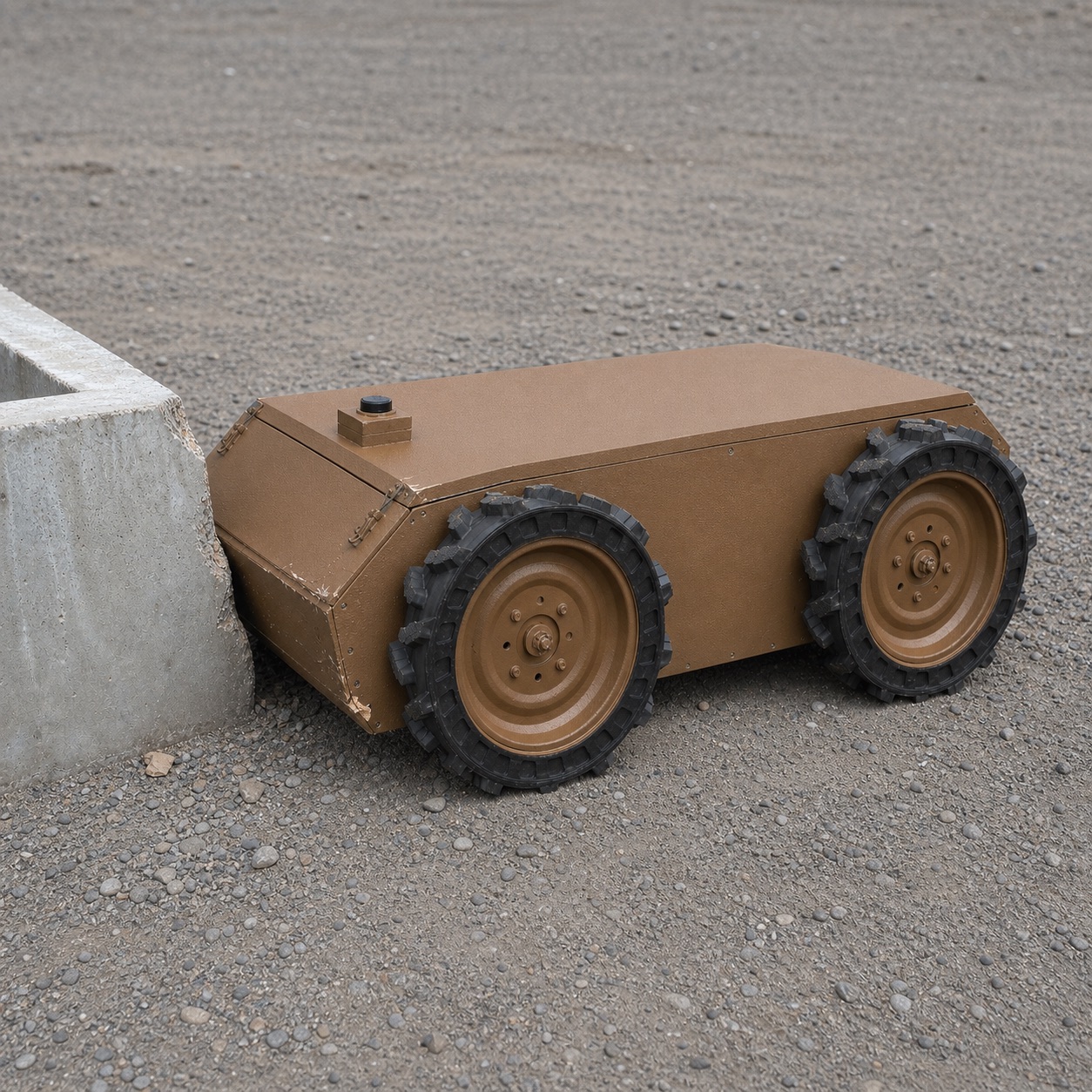

The large closed ARGUS box distributes load through panels, plywood ribs and local steel connectors. In the calculation-led collision scenario, the repair zone remains near the front corner instead of propagating across the entire shell.
The event ends; the inspection begins
For a large body, the load path from panel to ribs and the preservation of mounting planes for sensors, battery and drive are decisive.

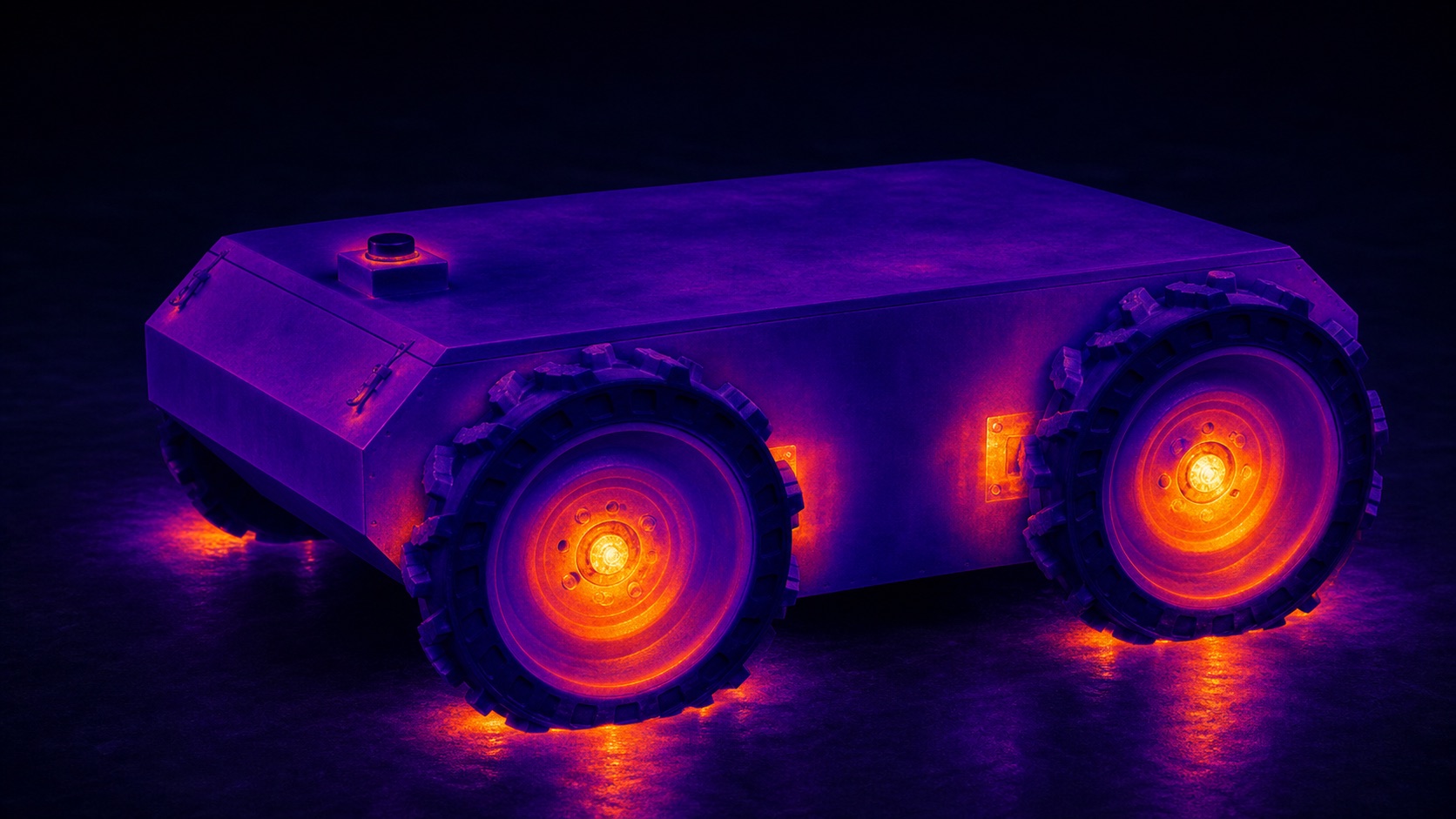

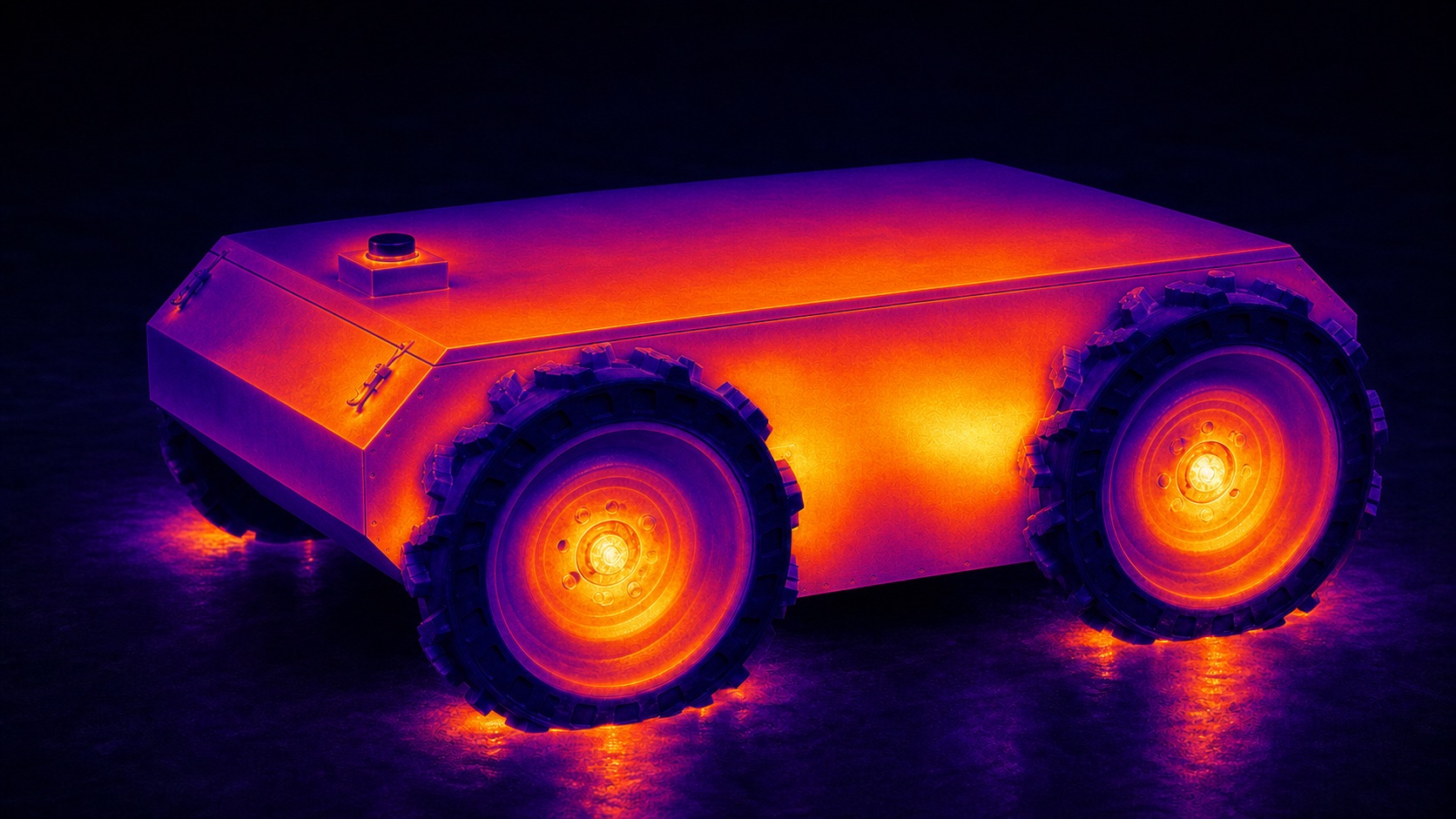

Identical heat sources; different shell response
Two drive units, battery and electronics create local heat zones; the plywood wall transfers that heat to the outer surface more slowly.

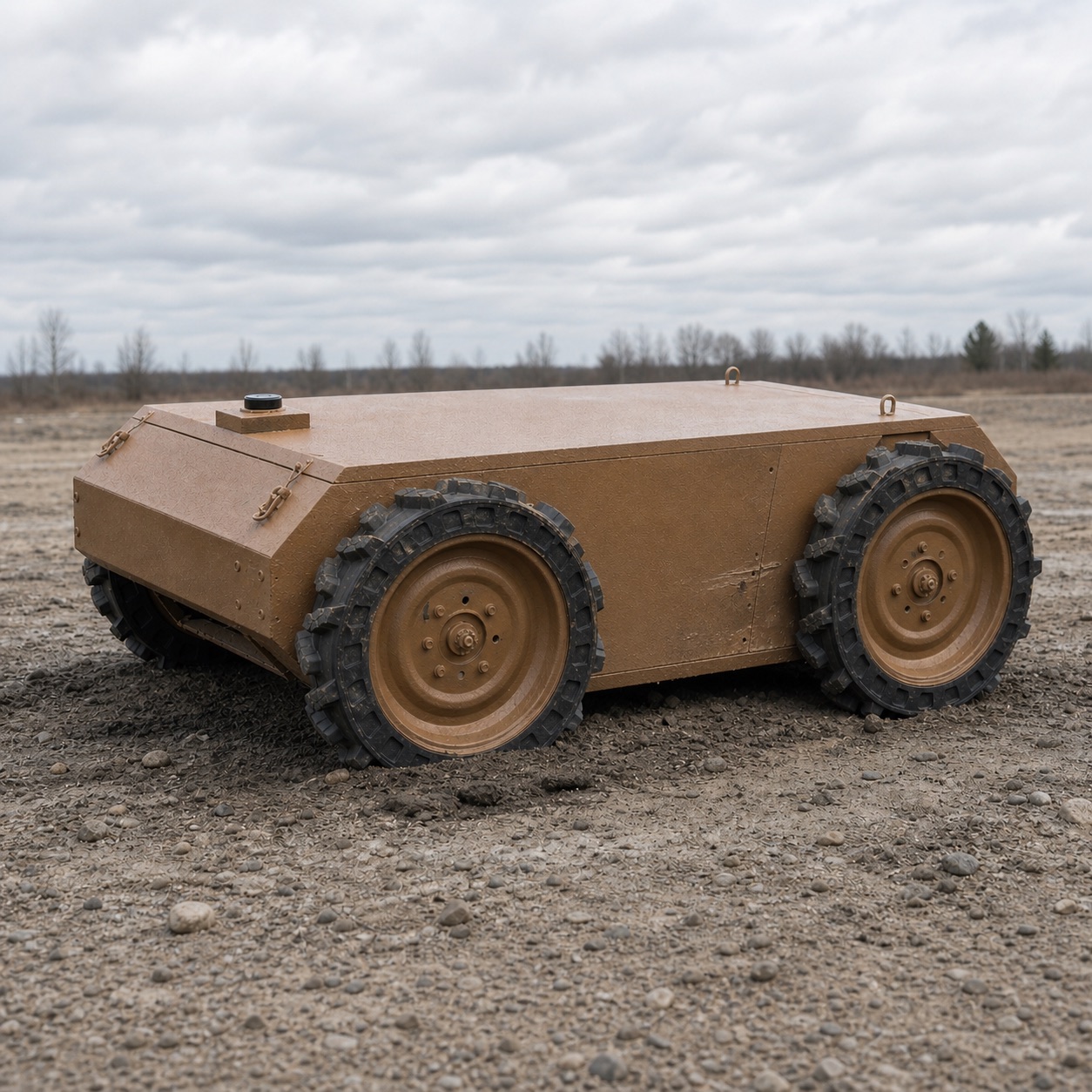

What happens as the load increases
Plywood does not make the vehicle indestructible. Its practical value is that damage can remain visible, local and repairable before the load reaches critical joints or internal equipment.
Surface trace
Raptor-coating abrasion, scratches and a shallow edge mark. Geometry and function remain unchanged.
Local crushing
Veneer compression, a small layered chip or short delamination near the contact or fastener. Inspection and a local repair are required.
Joint displacement
A joint can open, an angle connector can deform, or a fastener can pull through. Alignment, drive mounts and retained equipment must be checked.
Functional failure
At higher energy the panel or rib can fracture, equipment can shift and mobility can be lost. The damaged module must be replaced; no protection claim is implied.
The transition points depend on mass, actual speed, angle and area of contact, support conditions, moisture, manufacturing quality and the final configuration. They must be established by instrumented tests for each model.
STRUCTURAL ARCHITECTURE
A plywood monocoque, not decorative cladding
The current HARDY body is a load-sharing plywood box with plywood stiffening ribs, 3 mm steel angle connectors, industrial bearings and local metal interfaces. Its performance comes from the closed geometry, rib spacing, joints and quality control — not from a claim that plywood is equivalent to armour steel.
Open the calculations, thermal-imaging analysis and source data →
Характеристики та комплектація
Технічні параметри
Базові параметри
- Корисне навантаження
- до 80 кг
- Швидкість
- до 15 км/год
Привід та енергетика
- Електродвигуни
- 2 × 800–1000 Вт
- Штатна батарея
- 80 А·год
- Ходова частина
- чотириколісна електрична платформа
Корпус, інтеграція та сервіс
- Матеріал корпусу
- 18-мм вологостійкий фанерний композит
- Покриття
- захисне фактурне покриття Raptor
- Сервіс
- локальна заміна корпусних панелей і доступ до силових систем
Силова система та межі базового постачання
- Комплектація продажу
- Платформа без озброєння; підтверджено власником
Ready package
What is included
ARGUS platform with powertrain and standard battery;
operator control package;
charger and base service kit;
configuration data sheet, commissioning and team training.
Delivery data sheet
Parameters fixed before order
Before contract and acceptance, HARDY issues the specific configuration data sheet covering dimensions, configured mass, ground clearance, slopes and obstacles, protection rating, temperature range, battery set, charging time, control channels and range, video, loss-of-link behaviour and integrated payloads.
Delivery and support
Commercial terms
Across Ukraine; carrier tariff applies, typically from UAH 200.
12 months for the serial product; service scope and timing are fixed in the delivery documents.
14 days for a standard product under the published policy; configured products follow agreed terms.
Completeness check, functional test, configuration data sheet and operator onboarding.
Intended users
Who it is for
Military units, defence foundations, government customers and mission-payload integrators.
